SVM - EE Series
| S.No | Bobbin Type | Vertical / Horizontal | Number of Pin | Pin Type | Attachment |
|---|---|---|---|---|---|

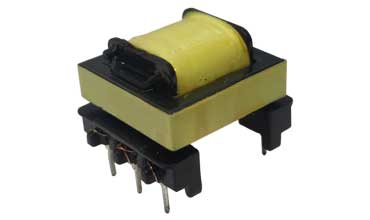

| 1 | EE13×14×4 | Horizontal | 8 Pin | Straight Pin |  EE13×14×4 |

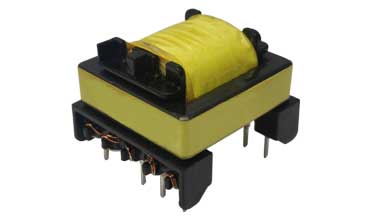

| 2 | EE16/16/5 | Horizontal | 6 Pin | Straight Pin | EE16x16x5 |
| 3 | EE19×16×5 | Horizontal | 8 Pin | Straight Pin | EE19×16×5 |

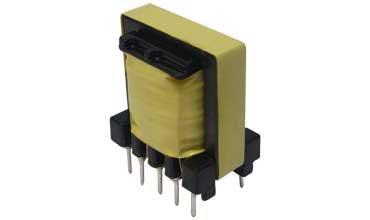

| 4 | EE20/20/6 | Vertical | 10 Pin | Straight Pin | EE20x20x6 |
| 5 | EE20x20x6 | Horizontal | 6 Pin | Straight Pin | EE20x20x6 |
| 6 | EF20x20x6 | Horizontal | 9 Pin | Straight Pin | EF20x20x6 |

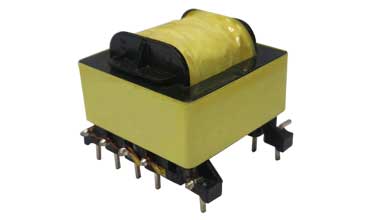

| 7 | EE25/26/7 | Horizontal | 8 Pin | L Pin | EE25x26x7 |

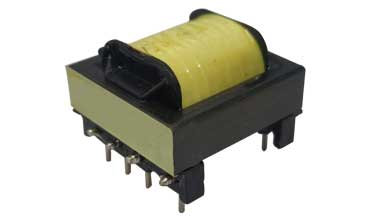

| 8 | EE25/26/7 | Horizontal | 10 Pin | Straight Pin | EE25x26x7 |
| 9 | EF25/26/11 | Horizontal | 12 Pin | L Pin | EF25x26x11 |
| 10 | EE25x26x7-2 Section | Horizontal | 8 Pin | Straight Pin | EE25x26x7 |
| 11 | EE25x26x7 | Horizontal | 8 Pin | L Pin | EE25x26x7 |
| 12 | EE25x26x7 | Horizontal | 12 Pin | L Pin | EE25x26x7 |
| 13 | EE25×26×7 | Vertical | 6 Pin | Straight Pin | EE25x26x7 |
| 14 | EE25×26×11 | Horizontal | 14 Pin | Straight Pin | EE25×26×11 |
| 15 | EE30×30×7 | Vertical | 12 Pin | Straight Pin | EE30×30×7 |
| Various Types: |
Flyback Transformer Push pull Transformer Gate Drive Transformer Forward Converter Transformer Pulse Transformer |
|---|---|
| Rating: |
Upto 500 kHz switching frequency |
| Standards: |
IEC 60601-1 |
| Core Geometries: |
EE, EFD, ETD, EP, PQ, RM, ER, Pot, Toroid, UU, UI, etc. |
| Conductor: |
Enameled Copper Conductor as per NEMA Standard Tex – E Wires (Triple Insulated Wires) Round Litz Wire & Twisted wire |
| In House Facilities: |
Special Geometry in Ferrites by developing Soft Tooling Bobbin Molding Facility Pin Insertion Facility High Volume Manufacturing Facility |
| Applications: |
LED Lighting, Consumer Electronics - Chargers, Automotive Electronics, Welding Technologies, and Medical Electronics, Transformer for LED Driver, Magnetic for LED Driver etc. |
