Inductors & Chokes

SVM - Inductors and Chokes

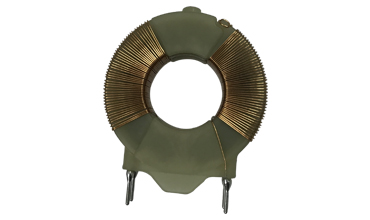

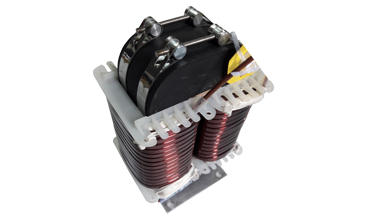

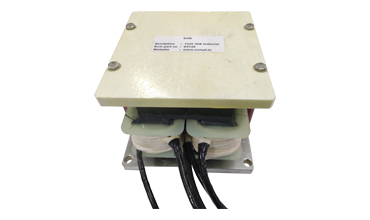

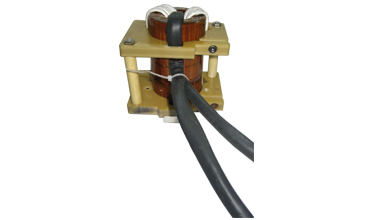

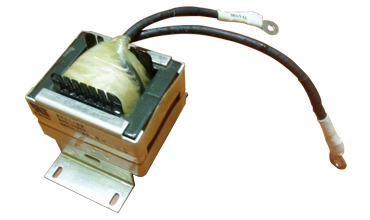

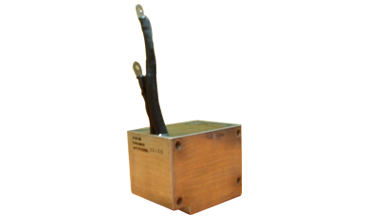

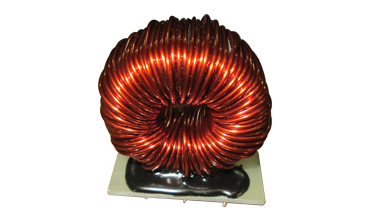

Various Types:

AC Inductor

DC Inductor

PFC Inductor

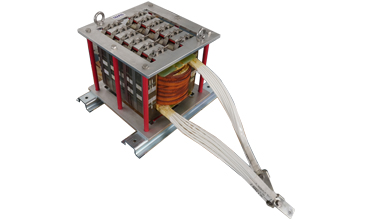

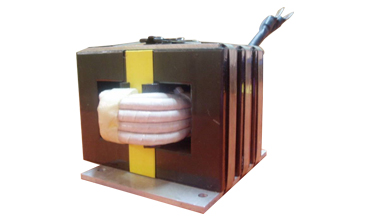

High Current Inductor

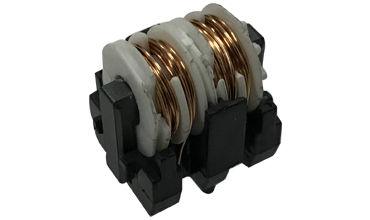

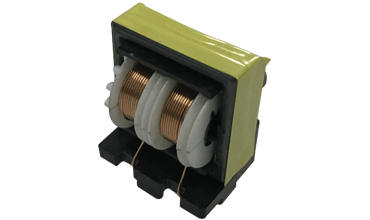

Common Mode Choke

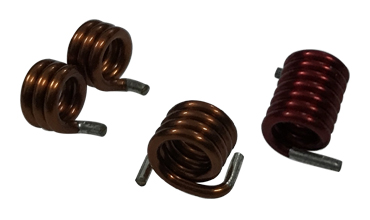

Air Core Inductors

Air Core Balun Coils

Rating:

High Current Inductors up to 300A Rated Current.

Standards:

IEC 60601-1, IEC 61558-1

Core Geometries:

EE, UU, UI, Special Sized Cores by stacking Ferrite Blocks and Special Geometry Ferrites can be developed by stacking multiple cores to meet higher Area Product

Conductor:

For High Current Inductors: Litz wire – Round and Type 8 Rectangular Litz for High Current Carrying Capacity up to 300A using Silk Yarn, Polyester Yarn, Nomex Serving

In House Facilities:

Special Geometry Ferrites can be developed by stacking multiple cores

Core Grinding for meeting Special AL Value

Rectangular and Round Litz Wire Manufacturing Facility

Mounting parts Fabrication Facility (Punching, Bending and Forming – In-house Tool Room).

FR4 and Aluminium Machined Mounting Parts

Applications:

High Current Inductors: PWM Converter, IGBT Converter, Amplifier, Power supplies, Magnetic for electric vehicle, Inductors for electric vehicle etc.
