SVM - PQ Series
| S.No | Bobbin Type | Vertical / Horizontal | Number of Pin | Pin Type | Attachment |
|---|---|---|---|---|---|

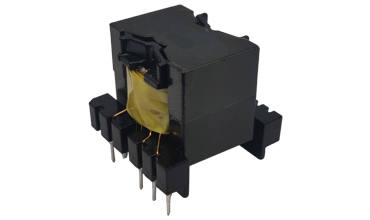

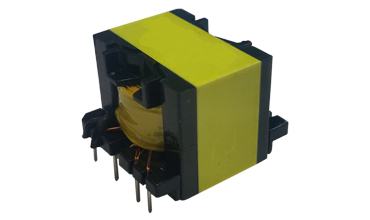

| 1 | PQ20/16 Series | Vertical | 14 Pin | Straight Pin |  PQ20×16 |

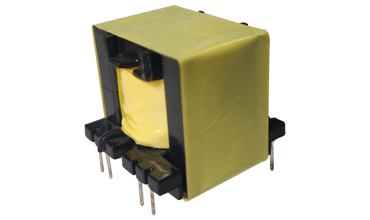

| 2 | PQ26/20 Series | Vertical | 12 Pin | Straight Pin | PQ26×20 |

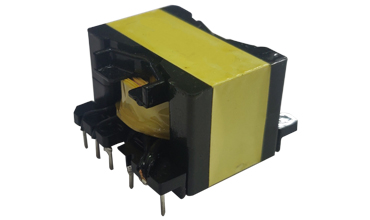

| 3 | PQ26/25 Series | Vertical | 12 Pin | Straight Pin | PQ26×25 |

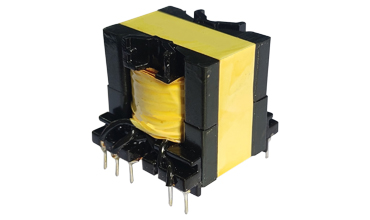

| 4 | PQ32/20 Series | Vertical | 12 Pin | Straight Pin | PQ32×20 |

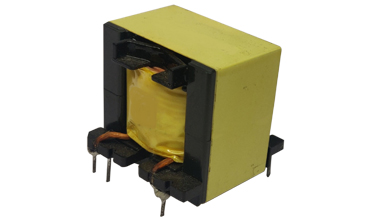

| 5 | PQ32/30 Series | Vertical | 12 Pin | Straight Pin | PQ32×30 |
| Various Types: |
Flyback Transformer Push pull Transformer Gate Drive Transformer Forward Converter Transformer Pulse Transformer |
|---|---|
| Rating: |
Upto 500 kHz switching frequency |
| Standards: |
IEC 60601-1 |
| Core Geometries: |
EE, EFD, ETD, EP, PQ, RM, ER, Pot, Toroid, UU, UI, etc. |
| Conductor: |
Enameled Copper Conductor as per NEMA Standard Tex – E Wires (Triple Insulated Wires) Round Litz Wire & Twisted wire |
| In House Facilities: |
Special Geometry in Ferrites by developing Soft Tooling Bobbin Molding Facility Pin Insertion Facility High Volume Manufacturing Facility |
| Applications: |
LED Lighting, Consumer Electronics - Chargers, Automotive Electronics, Welding Technologies, and Medical Electronics, Transformer for LED Driver, Magnetic for LED Driver etc. |
