SMPS Transformer

SVM - SMPS Transformers

Various Types:

Flyback Transformer

Push pull Transformer

Gate Drive Transformer

Forward Converter Transformer

Pulse Transformer

Rating:

Upto 500 kHz switching frequency

Standards:

IEC 60601-1

Core Geometries:

EE, EFD, ETD, EP, PQ, RM, ER, Pot, Toroid, UU, UI, etc.

Conductor:

Enameled Copper Conductor as per NEMA Standard

Tex – E Wires (Triple Insulated Wires)

Round Litz Wire & Twisted wire

In House Facilities:

Special Geometry in Ferrites by developing Soft Tooling

Bobbin Molding Facility

Pin Insertion Facility

High Volume Manufacturing Facility

Applications:

LED Lighting, Consumer Electronics - Chargers, Automotive Electronics, Welding Technologies, and Medical Electronics, Transformer for LED Driver, Magnetic for LED Driver etc.

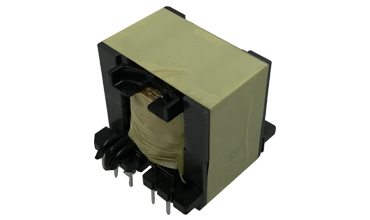

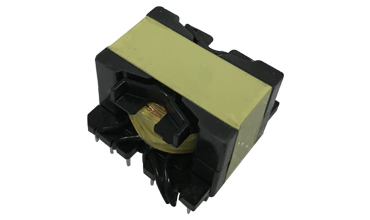

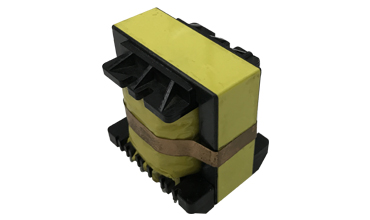

PQ26/25 Transformer:

Low Profile and High Profile

PQ26/25Bobbin:

High Profile Vertical 12 Pin Bobbin:

Height: 27.5mm

Low Profile Vertical 12 Pin Bobbin:

Height: 24.5mm

PQ32/30 Available upon request:
